Storage & Potting Sheds

Elford Sheds - in Southampton and around Hampshire.

Standard Shed Range

Norfolk Range

12mm Apex shed, lock and key, windows can be either side available with double doors , 1.68m eaves

Cladding  - 12mm
Framing - 45 x 34mm
Eaves HT - 1.68m
Lock & Key

  • Our best selling apex roof shed
  • Tongue and groove shiplap including floor and roof
  • Fully framed and braced door with three hinges
  • Window section can be fitted either side
  • Double doors can be fitted to 806 and above
Size Code Size L x W x H Windows Door W x H
604 1.8 x 1.2 x 2.0m 2 670 x 1650mm
705 2.1 x 1.5 x 2.1m 2 790 x 1750mm
806 2.4 x 1.8 x 2.1m 2 790 x 1750mm
1006 3.0 x 1.8 x 2.1m 3 790 x 1750mm
1008 3.0 x 2.4 x 2.2m 3 790 x 1750mm
To request an assembly guide or build plan please email us at info@elfordsheds.co.uk
More info Less info Gallery

Suffolk

Available in 11 differnt styles

Cladding - 12mm
Framing - 45 x 34mm
Internal HT - 1.98m to 1.8m
Lock & Key
Door - 790 x 1750mm

  • Popular pent roof shed with a choice of door positions
  • Tongue & groove shiplap including floor and roof
  • Fully framed and braced door with three hinges
  • Please specify door position on order
Size Code Size FW x D x H Windows Door W x H
604 1.8 x 1.2 x 2.06m 1 790 x 1750mm
705 2.1 x 1.5 x 2.06m 1 or 2* 790 x 1750mm
806 2.4 x 1.8 x 2.06m 2 790 x 1750mm
1006 3.0 x 1.8 x 2.06m 2 or 3* 790 x 1750mm
1008 3.0 x 2.4 x 2.11m 2 or 3* 790 x 1750mm
To request an assembly guide or build plan please email us at info@elfordsheds.co.uk
More info Less info Gallery

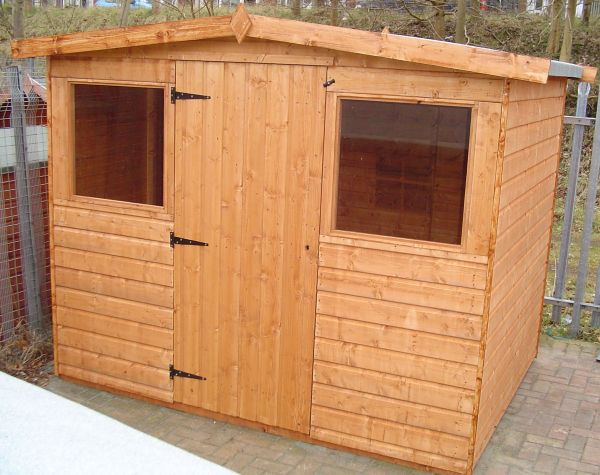

Dart

Transverse Apex roof shed, 1.8m Eaves, doors can be offset if required.

Cladding - 12mm
Framing - 45 x 34mm
Eaves HT - 1.8m
Lock & Key
Door - 790 x 1750mm

  • Transverse apex roof shed
  • 604 and 705 model have an offset door to the left
  • 806 and larger models have a central door
  • Tongue & groove shiplap including floor and roof
  • Fully framed and braced door with three hinges
  • Please note windows are now supplied one board lower than the door
Size Code Size FW x D x H Windows Door W x H
604 1.8 x 1.2 x 2.06m 1 790 x 1750mm
705 2.1 x 1.5 x 2.06m 1 790 x 1750mm
806 2.4 x 1.8 x 2.06m 2 790 x 1750mm
1006 3.0 x 1.8 x 2.06m 2 790 x 1750mm
1008 3.0 x 2.4 x 2.06m 2 790 x 1750mm
To request an assembly guide or build plan please email us at info@elfordsheds.co.uk
More info Less info Gallery

Pytchley

Off-set apex roof shed, 300mm roof overhang, door on left as standard

Cladding - 12mm
Framing - 45 x 34mm
Eaves HT - 1.68 to 1.9m
Lock & Key
Door - 790 x 1625mm

  • Off-set apex roof shed
  • 300mm roof overhang
  • Tongue & groove shiplap including roof an floor
  • Fully framed and braced door with three hinges
  • Door is on the left as standard
  • Please note windows are now supplied one board lower than the door
Size Code Size FW x D x H Windows Door W x H
604 1.8 x 1.2 x 2.2m 1 790 x 1750mm
705 2.1 x 1.5 x 2.25m 1 790 x 1750mm
806 2.4 x 1.8 x 2.3m 2 790 x 1750mm
1006 3.0 x 1.8 x 2.3m 2 790 x 1750mm
1008 3.0 x 2.4 x 2.4m 2 790 x 1750mm
To request an assembly guide or build plan please email us at info@elfordsheds.co.uk
More info Less info Gallery

Surrey

Apex roof shed with double doors, window can be fitted either side, 1.68m eaves height

Cladding - 12mm
Framing - 45 x 34mm
Eaves HT - 1.68m
Lock - Slide Bolt
Door - 1200 x 1625mm

  • Apex roof shed with double doors
  • Tongue & groove shiplap including floor and roof
  • Fully framed and braced doors with slide bolt
  • Window section can be fitted either side
Size Code Size L x W x H Windows Door W x H
707 2.1 x 2.1 x 2.15m 2 1200 x 1625mm
To request an assembly guide or build plan please email us at info@elfordsheds.co.uk
More info Less info Gallery

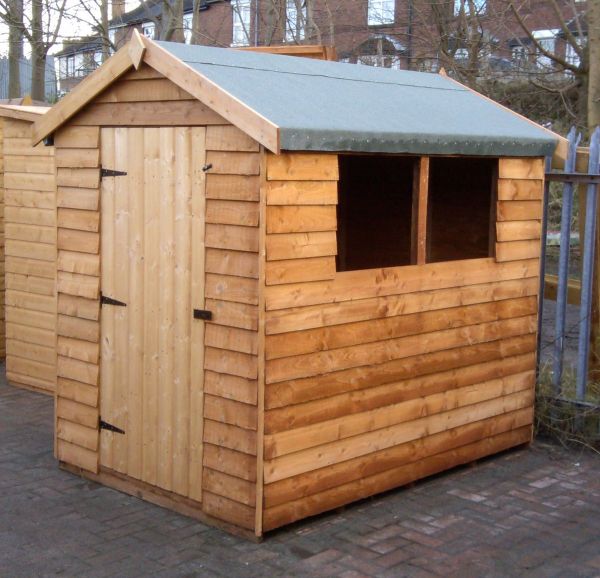

Cottage Range

An economical apex roof shed in traditional weatherboard cladding, roof and floor a solid close board timber, T & G Door, window can be fitted either side.

Cladding - Overlap
Framing - 50 x 22mm
Eaves HT - 1.68m
Lock - Hasp & Staple

  • Economical apex roof shed
  • Traditional weatherboard style overlap cladding
  • Roof and floor are solid close-boarded timber
  • Tongue & groove door with three hinges
  • Window section can be fitted either side
Size Code Size L x W x H Windows Door W x H
604 1.8 x 1.2 x 1.9m 1 660 x 1625mm
705 2.1 x 1.5 x 2.1m 2 760 x 1625mm
806 2.4 x 1.8 x 2.1m 2 760 x 1625mm
1006 3.0 x 1.8 x 2.1m 3 760 x 1625mm
1008 3.0 x 2.4 x 2.2m 3 900 x 1625mm
To request an assembly guide or build plan please email us at info@elfordsheds.co.uk
More info Less info Gallery

Compact Sheds

Wallshed

Cladding - 12mm
Framing - 45 x 34mm
Int HT - 1.7m -1.8m
Door - 1200 x 1625mm
Lock - Slide Bolt

  • Free standing lean-to type building
  • Ideal for placing against wall or fence
  • Framed & braced double doors in the fornt
  • Also available with a single door in the end
  • Tongue and grooved shiplap throughout
Size Code Size FW x D x H Door W x H
626 1.8 x 0.76 x 1.9m 1200 x 1625mm
To request an assembly guide or build plan please email us at info@elfordsheds.co.uk
More info Less info Gallery

Half Wallshed

Cladding - 12mm
Framing - 45 x 34mm
Int HT - 1.7m -1.8m
Door - 600 x 1625mm
Lock - Slide Bolt

  • Free standing lean-to type building
  • Ideal for placing against wall or fence
  • Framed & braced single door in the fornt
  • Tongue and grooved shiplap throughout
Size Code Size FW x D x H Door W x H
326 0.9 x 0.76 x 1.9m 600 x 1625mm
To request an assembly guide or build plan please email us at info@elfordsheds.co.uk
More info Less info Gallery

Clutterbox

Cladding - 12mm
Framing - 34 x 34mm
Int HT - 1.27m -1.34m
Door - 900 x 1150mm
Lock - Slide Bolt

  • Compact storage unit
  • Lower than the Wallshed range
  • Framed & braced double doors
  • Tongue and grooved shiplap throughout
Size Code Size FW x D x H Door W x H
426 1.2 x 0.76 x 1.4m 900 x 1150mm
To request an assembly guide or build plan please email us at info@elfordsheds.co.uk
More info Less info Gallery

Overlap Clutterbox

Cladding - 12mm
Framing - 34 x 34mm
Int HT - 1.27m -1.34m
Door - 900 x 1150mm
Lock - Slide Bolt

  • Compact storage unit
  • Lower than the Wallshed range
  • Framed & braced double doors
  • Tongue and grooved shiplap throughout
Size Code Size FW x D x H Door W x H
426 1.2 x 0.76 x 1.4m 900 x 1150mm
To request an assembly guide or build plan please email us at info@elfordsheds.co.uk
More info Less info Gallery

Bikestore

Cladding - 12mm
Framing - 45 x 34mm
Eaves HT - 1.2m
Door - 1500 x 1150mm
Lock - Slide Bolt

  • Apex roof bike store
  • Can also be used for general storage
  • Framed and braced double doors
  • Tongue and grooved shiplap inc. floor roof
Size Code Size FW x D x H Door W x H
703 2.1 x 0.9 x 1.7m 1500 x 1150mm
To request an assembly guide or build plan please email us at info@elfordsheds.co.uk
More info Less info Gallery

Gretton

Cladding - 12mm
Framing - 45 x 34mm
Eaves HT - 1.2m
Door - 1500 x 1150mm
Lock - Slide Bolt

  • Apex roof bike store
  • Can also be used for general storage
  • Framed and braced double doors
  • Tongue and grooved shiplap inc. floor roof
Size Code Size FW x D x H
604 1.8 x 1.2 x 2.06m
705 2.1 x 1.5 x 2.06m
806 2.4 x 1.8 x 2.06m
To request an assembly guide or build plan please email us at info@elfordsheds.co.uk
More info Less info Gallery

Garden Chest

Cladding - 12mm
Framing - 34 x 34mm
Int HT - 0.83m - 0.90m

  • Storage unit with lift up roof
  • Tongue and grooved shiplap throughout
  • Internal height on 402 = 0.69m - 0.77m
Size Code Size FW x D x H
402 1.2 x 0.6 x 0.85m
503 1.5 x 0.9 x 0.98m
603 1.8 x 0.9 x 0.98m
To request an assembly guide or build plan please email us at info@elfordsheds.co.uk
More info Less info Gallery

Logstore

Cladding - 12mm
Framing - 45 x 34mm
Eaves HT - 1.2m
Door - 1500 x 1150mm
Lock - Slide Bolt

  • Apex roof bike store
  • Can also be used for general storage
  • Framed and braced double doors
  • Tongue and grooved shiplap inc. floor roof
Size Code Size FW x D x H
426 1.2 x 0.76 x 1.4m
To request an assembly guide or build plan please email us at info@elfordsheds.co.uk
More info Less info Gallery

Binstore

Cladding - 12mm
Framing - 45 x 34mm
Int HT - 1.29m - 1.36m
Door - 710 x 1185mm
Lock - Tower Bolt

  • Storage unit suitable for Wheelie Bins
  • Three sizes, Single, Double, Triple
  • Lift up roof, slatted as standard or felted on request
  • No floor, includes back
  • Tongue and grooved shiplap
Size Code Model Size FW x D x H Door W x H
303 Single 0.83 x 0.87 x 1.4m 710 x 1185mm
603 Double 1.6 x 0.87 x 1.4m 710 x 1185mm
903 Triple 2.4 x 0.87 x 1.4m 710 x 1185mm
To request an assembly guide or build plan please email us at info@elfordsheds.co.uk
More info Less info Gallery

Corner & Potting Sheds

Rutland

An economical apex roof shed in traditional weatherboard cladding, roof and floor a solid close board timber, T & G Door, window can be fitted either side.

Cladding - 15mm
Framing - 45 x 34mm
Int HT - 1.98m -1.8m
Door - 790 x 1750mm
Lock - Lock & Key

  • Pent roof potting shed
  • Thicker than average tongue and grooved shiplap
  • Stable style door
  • Opening window
  • Workbench
  • Galvanised tee hinges
  • Please specify door position on order
Size Code Size L x W x H Windows Door W x H
606 1.8 x 1.8 x 2.1m 2 790 x 1750mm
707 2.1 x 2.1 x 2.1m 2 790 x 1750mm
808 2.4 x 2.4 x 2.1m 2 790 x 1750mm
909 2.7 x 2.7 x 2.1m 2 790 x 1750mm
To request an assembly guide or build plan please email us at info@elfordsheds.co.uk
More info Less info Gallery

Dual

An economical apex roof shed in traditional weatherboard cladding, roof and floor a solid close board timber, T & G Door, window can be fitted either side.

Cladding - 15mm
Framing - 45 x 34mm
Int HT - 1.98m -1.8m
Door - 790 x 1750mm
Lock - Lock & Key

  • Pent roof potting shed
  • Thicker than average tongue and grooved shiplap
  • Stable style door
  • Opening window
  • Workbench
  • Galvanised tee hinges
  • Please specify door position on order
Size Code Size FW x D x H Door W x H
606 1.8 x 1.8 x 2.06m 790 x 1750mm
806 2.4 x 1.8 x 2.06m 790 x 1750mm
1006 3.0 x 1.8 x 2.06m 790 x 1750mm
808 2.4 x 2.4 x 2.06m 790 x 1750mm
1008 3.0 x 2.4 x 2.06m 790 x 1750mm
To request an assembly guide or build plan please email us at info@elfordsheds.co.uk
More info Less info Gallery

Middleton

An economical apex roof shed in traditional weatherboard cladding, roof and floor a solid close board timber, T & G Door, window can be fitted either side.

Cladding - 15mm
Framing - 45 x 34mm
Int HT - 1.98m -1.8m
Door - 790 x 1750mm
Lock - Lock & Key

  • Pent roof potting shed
  • Thicker than average tongue and grooved shiplap
  • Stable style door
  • Opening window
  • Workbench
  • Galvanised tee hinges
  • Please specify door position on order
Size Code Size FW x D x H Door W x H
604 1.8 x 1.2 x 2.06m 790 x 1750mm
705 2.1 x 1.5 x 2.06m 790 x 1750mm
806 2.4 x 1.8 x 2.06m 790 x 1750mm
1006 3.0 x 1.8 x 2.06m 790 x 1750mm
1008 3.0 x 2.4 x 2.11m 790 x 1750mm
To request an assembly guide or build plan please email us at info@elfordsheds.co.uk
More info Less info Gallery

See it, buy it & enjoy it for life !

View our catalogue

We have been selling sheds and summerhouses in Southampton for 30yrs as a family business and are the only Buy with Confidence shed builder in Southampton. We are sponsors of Southampton Football Club.
