Pet Housing & Workshops

Laughton

Cladding - 12mm
Framing - 45 x 34mm
Int HT - 1.52 to 1.67m
Door - 700 x 1450mm
Lock - Lock & Key


• Pent roof keenel & run
• 1.2 x 1.2m kennel with floor
• 1.8m or a 2.4m run
• A sliding door connects the two (370 x 450mm)
• Run is supplied without a floor for hygiene purposes
• Galvanised steel mesh to the front

Size Code	Size FW x D x H	Door W x H
1004	3.0 x 1.2 x 1.8m	700 x 1450mm
1204	3.6 x 1.2 x 1.8m	700 x 1450mm

To request an assembly guide or build plan please email us at info@elfordsheds.co.uk

More info Less info Gallery

Welland Range

Cladding - 12mm
Framing - 45 x 34mm
Eaves HT - 1.68m
Lock - Tower Bolt
Door - 790 x 1750mm


• Apex kennel and run
• Enclosed kennel with floor (1.8x1.2m)
• Mesh run with no floor (1.8x1.8m)
• Stable style door
• Hinged pop hole (305x480mm)

Size Code	Size L x W x H	Door W x H
1006	3.0 x 1.8 x 2.1m	790 x 1750mm

To request an assembly guide or build plan please email us at info@elfordsheds.co.uk

More info Less info Gallery

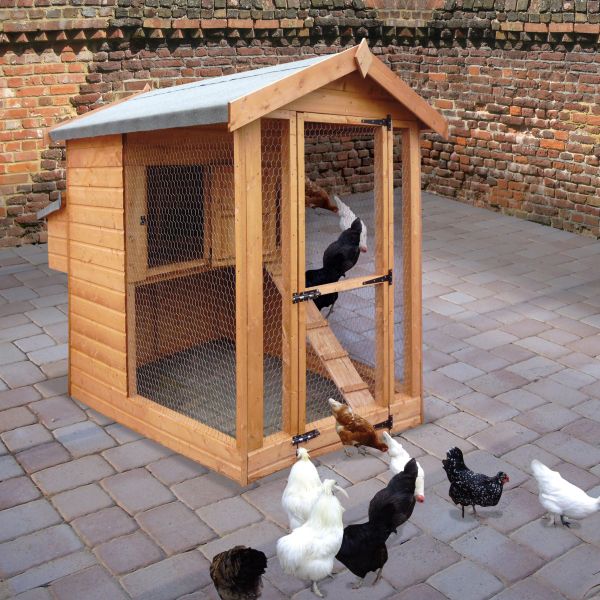

Hen House Range

Cladding - 12mm
Framing - 45 x 34mm
Eaves HT - 1.68m
Lock - Tower Bolt
Door - 610 x 1600mm


• Apex hen house
• Raised enclosure with floor and door
• Mesh run with no floor
• Could also be used as a cattery

Size Code	Size L x W x H	Door W x H
604	1.8m x 1.2m x 2.0m	610 x 1600mm
804	2.4m x 1.2m x 2.0m	610 x 1600mm

To request an assembly guide or build plan please email us at info@elfordsheds.co.uk

More info Less info Gallery

Sutton, Glen & Puppy

Cladding - 12mm
Framing - 34 x 34mm


• Apex roof dog kennels
• Three sizes
• Puppy opening is 190 x 260mm
• Glen opening is 350 x 450mm
• Sutton opening is 450 x 660mm

Size Code	Model	Size L x W x H	Opening W x H
218	Puppy	0.64 x 0.50 x 0.54m	190 x 260mm
326	Glen	1.06 x 0.76 x 0.9m	350 x 450mm
404	Sutton	1.2 x 1.2 x 1.1m	450 x 660mm

To request an assembly guide or build plan please email us at info@elfordsheds.co.uk

More info Less info Gallery

Warwick

Adaptable Apex Shed 15mm cladding, heavier upright frames wide range of sizes & options available, Includes and opening window.

Cladding - 15mm
Framing - 45 x 45mm
Eaves HT - 1.8m
Lock & Key
Door - 790 x 1750mm


• Based on the Warwick apex with additional features
• 150mm extra eaves height
• Heavier upright framework
• Opening window
• Door can be ordered in the side
• Window section can be fitted to either side
• Options include: Wider door, double doors, safety glass, extra door, stable door, extra window

Size Code	Size L x W x H	Windows	Door W x H
604	1.8 x 1.2 x 2.0m	1	790 x 1650mm
705	2.1 x 1.5 x 2.1m	2	790 x 1750mm
606	1.8 x 1.8 x 2.1m	2	790 x 1750mm
806	2.4 x 1.8 x 2.1m	2	790 x 1750mm
1006	3.0 x 1.8 x 2.1m	3	790 x 1750mm
1206	3.6 x 1.8 x 2.1m	4	790 x 1750mm
707	2.1 x 2.1 x 2.15m	2	790 x 1750mm
808	2.4 x 2.4 x 2.25m	2	790 x 1750mm
1008	3.0 x 2.4 x 2.25m	3	790 x 1750mm
1208	3.6 x 2.4 x 2.25m	4	790 x 1750mm
1010	3.0 x 3.0 x 2.35m	3	790 x 1750mm
1210	3.6 x 3.0 x 2.35m	4	790 x 1750mm

To request an assembly guide or build plan please email us at info@elfordsheds.co.uk

More info Less info Gallery

Warwick Plus 1.8m Eaves

Adaptable Apex Shed 15mm cladding, heavier upright frames wide range of sizes & options available, Includes and opening window.

Cladding - 15mm
Framing - 45 x 45mm
Eaves HT - 1.8m
Lock & Key
Door - 790 x 1750mm


• Based on the Warwick apex with additional features
• 150mm extra eaves height
• Heavier upright framework
• Opening window
• Door can be ordered in the side
• Window section can be fitted to either side
• Options include: Wider door, double doors, safety glass, extra door, stable door, extra window

Size Code	Size L x W x H	Windows	Door W x H
604	1.8 x 1.2 x 2.15m	1	790 x 1650mm
705	2.1 x 1.5 x 2.25m	2	790 x 1750mm
606	1.8 x 1.8 x 2.25m	2	790 x 1750mm
806	2.4 x 1.8 x 2.25m	2	790 x 1750mm
1006	3.0 x 1.8 x 2.25m	3	790 x 1750mm
1206	3.6 x 1.8 x 2.25m	4	790 x 1750mm
707	2.1 x 2.1 x 2.3m	2	790 x 1750mm
808	2.4 x 2.4 x 2.4m	2	790 x 1750mm
1008	3.0 x 2.4 x 2.4m	3	790 x 1750mm
1208	3.6 x 2.4 x 2.4m	4	790 x 1750mm
1010	3.0 x 3.0 x 2.5m	3	790 x 1750mm
1210	3.6 x 3.0 x 2.5m	4	790 x 1750mm

To request an assembly guide or build plan please email us at info@elfordsheds.co.uk

More info Less info Gallery

Warwick Conversion

Cladding - 15mm
Framing - 45 x 45mm
Eaves HT - 1.8m
Lock & Key
Door - 790 x 1750mm


• Based on the Warwick using the following options
• Transverse ridge
• 300mm roof overhang
• Window inserts
• Door shown right hand hinged

Size Code	Size L x W x H	Windows	Door W x H
608	1.8 x 2.4 x 2.25m	2	790 x 1750mm
808	2.4 x 2.4 x 2.25m	2	790 x 1750mm
810	2.4 x 3.0 x 2.35m	2	790 x 1750mm
1010	3.0 x 3.0 x 2.35m	2	790 x 1750mm

To request an assembly guide or build plan please email us at info@elfordsheds.co.uk

More info Less info Gallery

Kent

Thicker than average cladding. Available in 11 different styles, options include extra 150mm height, stable style doors, security windows, double doors, extra door and more.

Cladding - 15mm
Framing - 45 x 34mm
Internal HT - 1.98 to 1.8m
Lock & Key
Door - 790 x 1750mm

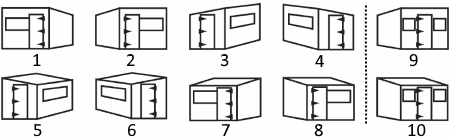

• Adaptable pent roof shed with choice of door positions
• Thicker than average tongue and groove shiplap including floor and roof
• Wide range of sizes and options
• Fully framed and brace door
• Three galvanised tee hinges
• Please specify door position on order
• Options include: Opening window, wider door, double door, safety glass, extra door, stable door, security windows

Size Code	Size FW x D x H	Windows	Door W x H
604	1.8 x 1.2 x 2.06m	1	790 x 1650mm
705	2.1 x 1.5 x 2.06m	1 or 2*	790 x 1750mm
606	1.8 x 1.8 x 2.06m	1 or 2*	790 x 1750mm
806	2.4 x 1.8 x 2.06m	2	790 x 1750mm
1006	3.0 x 1.8 x 2.06m	2 or 3*	790 x 1750mm
1206	3.6 x 1.8 x 2.06m	3 or 4*	790 x 1750mm
707	2.1 x 2.1 x 2.06m	1 or 2*	790 x 1750mm
808	2.4 x 2.4 x 2.11m	2	790 x 1750mm
1008	3.0 x 2.4 x 2.11m	2 or 3*	790 x 1750mm
1208	3.6 x 2.4 x 2.11m	3 or 4*	790 x 1750mm

To request an assembly guide or build plan please email us at info@elfordsheds.co.uk

More info Less info Gallery
